Beschreibung
SignalScope X offers professional, advanced, and basic tool sets for use in areas such as acoustics, audio, electronics, and vibration.
SignalScope X includes a free oscilloscope and subscription-based tool sets to meet your more serious needs.
SignalScope X’s Pro Tool Set subscription includes all the functionality previously present in SignalScope Pro, SoundMeter Pro, IOScope, and RoomScope, and adds 3 powerful new tools.
Features:
- Analyze signals coming from the iOS device’s current audio input device or built-in accelerometer.
- Assign input channel units and sensitivities for individual USB Audio devices.
- Direct support for Digiducer, Studio Six Digital, and select miniDSP hardware devices.
- Nominal acoustic sensitivities included for iOS device microphones, voltage sensitivities for headset input (including the Lightning-to-headset adapter)
- Manually switch between available audio input and output sources.
- Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
- Manually adjust audio sample rates, even up to 192 kHz, depending on input hardware.
- Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
- Save acquired measurement data to CSV, TXT (tab-delimited), or MAT files.
- Save high-resolution analyzer display images to PDF files.
- Retrieve your data files via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device.
Basic Tools:
- Oscilloscope - Basic oscilloscope and triggering functions.
- FFT Analyzer - Spectrum analyzer with user-settable frequency limits and basic triggering
- 2D Real-time Spectrogram Analyzer
- XY Plotter - Create Lissajous curves on your iOS device.
Advanced Tools: (Advanced Tool Set also includes basic tools)

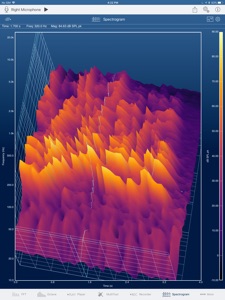

- 3D Real-time Spectrogram Analyzer - Stunning live visualization of incoming data

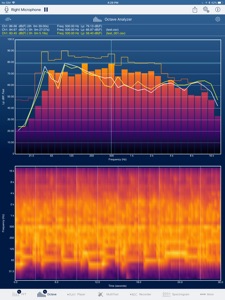

- Octave-band Analyzer - Whole and 1/3-octave RTA

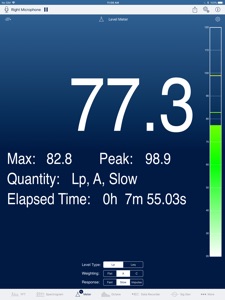

- Level Meter - Overall signal level meter
- Noise Dosimeter
- Data Recorder - Stream up to 8 channels to WAV, AIF, or CAF audio files.
- Stereo Signal Generator
Pro Tools: (Pro Tool Set subscription includes basic and advanced tools)
- Dual-channel System Analyzer (Frequency Response Magnitude/Phase, Phase Delay, Group Delay, Coherence, Impulse Response and Cross-Correlation)
- Room Acoustics Analyzer (T20, T30, T60, nonlinearity, EDT, Early Decay Time, Center Time, Clarity, and Definition in various frequency bands, adjustable Schroeder integration limits)

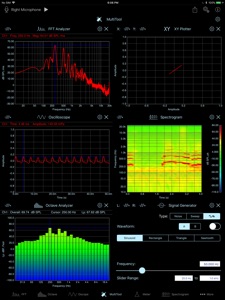

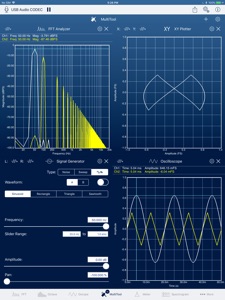

- MultiTool - Powerful data monitoring and project management (Add up to 2 subtools on iPhone, 6 subtools on iPad Pro with 10.5-inch or larger display, 4 subtools on other iPad models, and save an arbitrary number of different configurations for easy recall at a later time.)
- Multi-channel Audio File Player - Analyze pre-recorded data.
Additional Pro Features:
- Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter
- Percentile exceeded sound levels in the Level Meter and Octave Analyzer
- NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer
Regarding subscriptions
- Payment will be charged to your iTunes Account at the end of the free trial period, unless you have turned off automatic renewal. If the free trial has already expired, payment will be charged at confirmation of subscription purchase.
- Subscription automatically renews unless auto-renew is turned off at least 24 hours before the end of the current period.
- Your account will be charged for renewal within 24 hours prior to the end of the current period for the same price as the current period.
- You may manage your subscriptions and auto-renewal may be turned off by going to your iTunes Account Settings after purchase.
- Any unused portion of the free trial period will be forfeited when you purchase a subscription, where applicable.
- Terms and Conditions, and Privacy Policy, may be accessed at https://FaberAcoustical.com.
Neue Funktionen von Version 10.6.1
- In the FFT Analyzer Tool, “rms” or “pk” labels are shown after the units in the vertical axis label and/or the cursor data display, as appropriate. The vibration units are correctly shown in the vertical axis label for vibration data loaded from a file, when the integration level is changed (i.e. the acceleration, velocity, or displacement selection is different from the data stored in the file).
- Overall rms level is properly computed for FFT Analyzer vibration data loaded from a file, regardless of whether spectral smoothing is enabled or whether units of acceleration, velocity, or displacement are selected.
- Bug fixes.
Anbieter
Name
Faber Acoustical, LLC
Informationen
Entwickler
Kategorien
Version
10.6.1
Größe
34,8 MB
Game Center
Nein
VPP Device Licensing
Ja
Bewertung
Altersfreigabe: 4+
Kompatibilität
iOS 10.0 oder neuer
Geräte
iPad Air 2 (Cellular), iPad mini Retina (Cellular), iPad Pro (11"), iPad (5. Generation) Wi-Fi, iPad (6. Generation) Wi-Fi, iPod touch (6. Generation), iPad Pro (11") Wi-Fi + Cellular, iPad (6. Generation) Wi-Fi + Cellular, iPad Pro (12,9", 3. Generation), iPad (5. Generation) Wi-Fi + Cellular, iPad mini (5. Generation) Wi-Fi + Cellular, iPad mini (5. Generation), iPad Pro, iPad mini 3, iPad mini 4 (Cellular), iPad mini 4, iPad Air 2, iPad Pro (12,9", 2. Generation), iPad Pro (Cellular), iPad Pro (9,7 Zoll) (Cellular), iPad Pro (10,5") Wi-Fi + Cellular, iPad Pro (9,7 Zoll), iPad Air (3. Generation) Wi-Fi + Cellular, iPhone 6 Plus, iPad Air (3. Generation), iPad Pro (10,5"), iPad Pro (12,9", 2. Generation) Wi-Fi + Cellular, iPhone 6, iPhone XR, iPhone XS, iPhone 6s, iPhone SE, iPhone 7 Plus, iPhone 6s Plus, iPhone 5s, iPhone X, iPhone 8, iPhone XS Max, iPhone 8 Plus, iPhone 7, iPhone 5, iPad (7. Generation) Wi-Fi, iPhone 5c, iPad (7. Generation) Wi-Fi + Cellular, iPad Pro (12,9", 3. Generation) Wi-Fi + Cellular
